Chaw nres tsheb khib nyiab Kab rov tav Collection

Cov khoom muag

LYSZ15A Chaw nres tsheb khib nyiab kab rov tav yog cov khoom siv khib nyiab thiab kev kho mob nrog cov thev naus laus zis siab heev thiab cov txheej txheem ntawm nws tus kheej tsim los ntawm peb lub tuam txhab raws li kev lag luam hauv tsev xav tau ntawm cov khoom siv huv huv thiab kev khaws cov khib nyiab thiab hloov hom.

LYSZ15A integrated refuse compressor siv kab rov tav compression tshuab. Cov compressor thiab cov khib nyiab khib nyiab yog kev sib xyaw ua ke, thiab cov khoom ntim hauv tsev tsis kam yog compressed ncaj qha mus rau hauv cov khib nyiab khib nyiab kom txo qhov ntim, tso cov dej phwj tuaj thiab cov roj uas muaj nyob hauv cov khib nyiab, thiab tom qab ntawd hloov mus rau lub tsheb thauj khoom tshem tawm. Cov cuab yeej muaj cov yam ntxwv ntawm cov ntxhiab tsw tsawg, tsis muaj kev ua qias tuaj nruab nrab, thaj chaw ua haujlwm me me, hloov tau thiab lwm yam. Nws yog qhov tshwj xeeb tshaj yog tsim nyog rau qhov chaw nres tsheb hloov tshiab thiab qub chaw nres tsheb rov tsim kho hauv nroog qhov chaw nrhiav av nyuaj thiab qhov chaw me me.

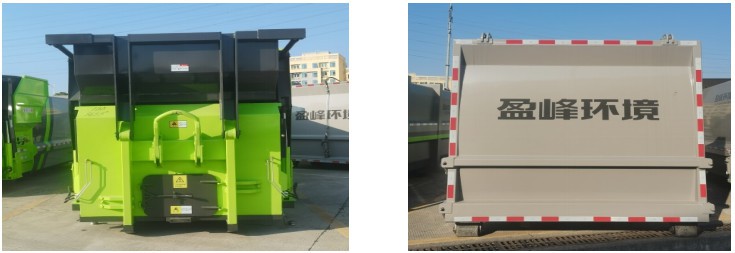

Daim duab 1-5 LYSZ15A integrated khib nyiab compressor thiab nws cov tsheb txhawb

Table 1-1 Configuration ntawm LYSZ15A integrated khib nyiab compressor

Lub luag haujlwm saib xyuas
LYSZ15A Chaw nres tsheb khib nyiab kab rov tav feem ntau yog siv rau cov khib nyiab khib nyiab ntawm rickshaws thiab cov tsheb me me ntawm tsawg dua 1.5 tons thiab tsawg dua 1.8 meters hauv qhov dav, raws li qhia hauv daim duab 2-1 thiab daim duab 2-2.

Daim duab 2-1 Cov ntaub ntawv ntawm lub rickshawDaim duab 2-2 Chaw thau khoom nruab nrab thiab cov tsheb me me

Scope ntawm daim ntawv thov
Nws yog tsuas yog siv rau kev sau thiab hloov cov khib nyiab hauv tsev los ntawm txoj kev hauv nroog, cov cheeb tsam kev lag luam, cov chaw nyob, tsev kawm ntawv thiab tsev kho mob.

Cov qauv tseem ceeb thiab kev ua haujlwm zoo

Daim duab 4-1 LYSZ15A integrated khib nyiab compressor

LYSZ15A integrated khib nyiab compressor yog tsim los ntawm compression bin los ua ke, khib nyiab lub thawv los ua ke, 'lub taub hau los ua ke, unloading qhov rooj, noj mechanism, xauv mechanism, hydraulic system, hluav taws xob system, thiab lwm yam. (Daim duab 4-1) :
Compression bin los ua ke, khib nyiab lub thawv sib dhos yog ua haujlwm compression ntawm cov khoom, compression bin yog cov khib nyiab compression channel, khib nyiab yog compressed cia thawv.

Lub siab lub taub hau sib dhos yog lub tshuab siab rau kev nias cov khib nyiab los ntawm cov compression bin rau hauv cov khib nyiab, uas tuaj yeem cuam tshuam thiab compress cov khib nyiab zoo (Daim duab 4-2).
Lub rooj sib txoos hauv ntej yog lub qhov rooj saib xyuas rau lub taub hau siab sib dhos thiab lub tog raj kheej compression, thiab tseem yog lub qhov rooj ntxuav rau kev ntxuav cov khib nyiab hauv lub nraub qaum ntawm lub taub hau siab tsis tu ncua.
Discharge door yog ib yam khoom siv rau kev tshem tawm cov khib nyiab.

LYSZ15A cov khib nyiab compressors siv lub thoob ntim khoom thiab hom kev thauj mus los. Lub tipping mechanism yog cov khoom noj ntawm lub compressor thiab yog ntsia rau pem hauv ntej ntawm lub compressor block (Daim duab 4-3).

Lub tshuab hluav taws xob (Daim duab 4-4) yog qhov chaw tswj ntawm lub compressor. Txhua qhov kev ua yog tswj hwm los ntawm PLC qhov kev pab cuam, uas tuaj yeem paub txog cov haujlwm tseem ceeb hauv qab no: (1) hydraulic system tiv thaiv: thaum hydraulic system roj kub siab, lub kaw lus yuav cia li pib lub tshuab txias. Thaum cov roj kub qis dhau lawm, lub kaw lus cia li pib lub tshuab hluav taws xob hydraulic, kom txog thaum cov roj kub nce mus rau qhov tsim nyog kub (yeem); (2) tsis siv neeg compression voj voog tuaj yeem paub tau, thaum nias lub voj voog compression khawm, lub taub hau siab tuaj yeem txav rov qab mus rau hauv lub compression chamber; (3) tuaj yeem paub qhov kev kuaj mob tsis siv neeg, thaum lub compressor tsis tuaj yeem ua haujlwm ib txwm, tuaj yeem txiav txim siab qhov ua txhaum, thiab tso rau ntawm qhov screen; (4) Lub tswb nrov: Thaum cov khib nyiab hauv lub thawv khib nyiab raug nias rau ntawm qhov yuav tsum tau ua, los ntawm kev txheeb xyuas tus nqi siab ntawm hydraulic system, los ntawm kev xav txog kev nyab xeeb, cov cuab yeej tiv thaiv thiab kev ua haujlwm zoo, lub kaw lus yuav cia li ceeb toom rau lub sijhawm no.

Hydraulic system (Daim duab 4-5): tag nrho cov hydraulic twj tso kua mis yog ntsia rau ntawm lub tub rau khoom hom twj tso kua mis bracket, compact qauv, lub zog txuag thiab kev tiv thaiv ib puag ncig. Cov khoom tseem ceeb ntawm lub kaw lus tau txais cov npe nrov hauv tsev thiab txawv teb chaws kom ntseeg tau tias muaj kev ntseeg siab thiab tsis muaj suab nrov.

Main technical parameters ntawm cov khoom
Table 5-1 Kev qhia tshwj xeeb ntawm LYSZ15A kev sib xyaw khib nyiab compressor

Qhov Zoo Tshaj Plaws
1, Cov yam ntxwv ntawm kev ua haujlwm
1.Cov khoom siv los tiv thaiv rov qab yog teem rau hauv compression chamber, uas muaj cov haujlwm ntawm crushing thiab tiv thaiv cov khib nyiab rebound (Daim duab 6-1).

1.2,Nrog rau theem kev sib hloov ntawm kev ua haujlwm ntawm peb-theem fais fab mov, nws yooj yim thiab ceev hloov cov theem ntawm lub cev tsis muaj rewiring.

1.3, Nrog LCD zaub muaj nuj nqi, tuaj yeem tso saib kev ua haujlwm ntawm cov khoom siv ntawm lub vijtsam, suav nrog tab sis tsis txwv rau: dynamic khib nyiab npaum li cas tso saib, cov lus qhia tsis raug, cov khoom siv khiav haujlwm, kev ua txhaum tus kheej kuaj pom, kev hloov kho kev ua haujlwm.

1.4,Nrog lub tswb nrov thiab tso saib ua haujlwm.

1.5,Tsis siv neeg cua sov dissipation thiab cua sov ua haujlwm ntawm hydraulic system (yeem).

1.6,Dual tswj kev ua haujlwm ntawm hlau thiab kov (yeem xaiv wireless chaw taws teeb tswj) (Daim duab 6-2).

1.7, Nrog rau kev tswj hwm qhov xwm txheej ceev.
1.8, Thaum lub taub hau compression nyob rau hauv txhua txoj haujlwm, nws tuaj yeem yuam rov qab mus rau qhov pib ua haujlwm me ntsis.
1.9, Nrog lub tswb tsis siv neeg thiab tsis siv neeg kuaj mob ua haujlwm.
1.10, Lub qhov rooj tom qab ntawm lub thawv khoom siv hydraulic xauv. Standard configuration: qhib thiab kaw lub rear qhov rooj ntawm lub thawv khoom yuav ncaj qha tswj nyob rau hauv lub cab ntawm lub detachable khib nyiab tsheb los ntawm kev siv quab yuam los ntawm hydraulic system ntawm lub ruber. Yeem: Nws yog siv los ntawm kev tswj hluav taws xob ntawm lub trolley thiab tsav los ntawm lub zog me me. Nws tuaj yeem ncaj qha tswj qhov qhib thiab kaw lub thawv rov qab lub qhov rooj hauv lub cab ntawm lub tsheb thauj khoom uas tshem tau

1.11, Cov cuab yeej muaj GPS qhov chaw ua haujlwm, cov ntaub ntawv kis tau tus mob, tswj chaw taws teeb muaj nuj nqi, kev pabcuam ntse (yeem).
2, Taw qhia txog kev ruaj ntseg thiab kev ntseeg tau
2.1, Sab thiab hauv qab daim hlau ntawm LYSZ15A compression chamber yog welded nrog lub zog siab steel thickness Ntau dua lossis sib npaug li 8 hli.
2.2, Sab thiab hauv qab daim hlau ntawm LYSZ15A lub taub hau sib dhos yog welded ntawm lub zog siab steel nrog thickness Ntau dua los yog sib npaug li 8 hli.
2.3, Dustbin tag nrho yog cov qauv arc loj, phaj thickness Ntau dua lossis sib npaug li 4 hli, khoom siv: Q355B.
2.4, Tag nrho cov ferrous hlau qhov chaw raug kho nrog xeb tiv thaiv, thiab hlau nyob rau hauv kev sib cuag ncaj qha nrog cov khib nyiab yog kho nrog acid pickling, phosphating thiab passivation.
2.5, Cov cuab yeej siv PLC tswj, tuaj yeem hloov kho lub zog ntawm lub tog raj kheej roj raws li lub nra ntawm cov khib nyiab compression, kom cov khib nyiab sib npaug thiab compactly faib rau hauv lub thawv.
2.6, Cov khoom tseem ceeb ntawm cov khoom siv: hydraulic valve thaiv, roj twj tso kua mis, lub cev muaj zog thiab cov khoom siv hluav taws xob tswj tau txais cov npe nrov hauv tsev thiab txawv teb chaws. Cov khoom siv hluav taws xob tseem ceeb ua tau raws li cov qauv kev nyab xeeb CE thiab txais yuav cov khoom siv hluav taws xob tsis zoo (Daim duab 6-4).


2.7, Tag nrho cov rotary pob khawm yog ua los ntawm tshwj xeeb tus kheej-lubricating bearings los yog sib koom bearings, thiab piston pas nrig nto ntawm lub tog raj kheej yog plated nrog chrome, uas muaj zog hnav tsis kam thiab corrosion kuj los xyuas kom meej nws cov kev pab cuam lub neej nyob rau hauv hnyav ib puag ncig.
3, Taw qhia txog kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig
3.1, me me hauv pem teb, tsis muaj kev tsim kho pej xeem lossis tsuas yog siv pej xeem yooj yim, kev lag luam thiab siv tau, hloov tau yooj yim, tsim nyog rau kev sau thiab hloov pauv ntawm txhua yam khoom siv hauv tsev.
3.2, Tes tuav hlau tswj khawm lub thawv, zoo txhim kho qhov chaw ua haujlwm ntawm cov neeg ua haujlwm.
3.3, Patented unloading lock mechanism thiab sealing qauv, kom ntseeg tau tias cov txheej txheem compression thiab pov tseg cov txheej txheem, tsis muaj dej phwj tuaj.
3.4, LYSZ15A integrated khib nyiab compressor yog tsav los ntawm ib lub twj tso kua mis thaum lub cev xav tau kev kub siab los yog ob lub twj tso kua mis thaum lub cev xav tau kev kub ceev, uas yog npaum li cas thiab lub zog txuag nrog tsawg tshav kub tso zis.
4, Khoom nta thiab qhov zoo
4.1, Kev ua haujlwm zoo ib puag ncig, tsis muaj kev cuam tshuam, tawg, tawg tshwm sim nyob rau hauv cov txheej txheem ntawm khib nyiab docking thiab hloov.
4.2, LYSZ15A compressor hydraulic twj tso kua mis chaw nres tsheb, peb lub tuam txhab siv high efficiency, txuag zog, txhim khu kev qha kev ua tau zoo ntawm ob lub twj tso kua mis, domestic thiab txawv teb chaws cov khoom zoo sib xws feem ntau siv ib tug twj tso kua mis tsav.
4.3, Compressor unloading door locking mechanism, domestic thiab txawv teb chaws cov khoom zoo sib xws feem ntau txais yuav lub sealing sawb compression tsis tuaj yeem hloov kho qhov rooj xauv hom, peb lub tuam txhab siv adjustable clearance locking mechanism tsim raug tswj ntawm sealing sawb compression. Kev sib khi zoo (Daim duab 6-5). Lub qhov rooj unloading anti-decoupling siab nyem lub cuab yeej txais yuav ob chav hydraulic xauv qauv kom zoo tiv thaiv qhov tshwm sim decoupling tshwm sim los ntawm cov tshuaj tiv thaiv quab yuam ntawm lub sealing sawb (Daim duab 6-6).
4.4, LYSZ15A compressors tau muab cov dej phwj tuaj ntawm txhua sab kom ntws cov dej phwj tuaj ntawm cov compressors (Daim duab 6-7).

Daim duab 6-5 Schematic daim duab ntawm kev xauv lub tshuab daim duab 6-6 Daim duab kos duab ntawm hydraulic xauv ntawm lub qhov rooj xauv khoom Daim duab 6-7 schematic daim duab ntawm cov dej phwj tuaj

Cov txheej txheem ua haujlwm tau qhia
1, LYSZ15A integrated khib nyiab compressor (Daim duab 7-1).


1.1, Tom qab cov neeg nyob hauv nroog nyob sau cov khib nyiab los ntawm tib neeg lub tsheb kauj vab, tsheb kauj vab lossis cov tsheb thauj khoom me me rau hauv lub tshuab nqus tsev, cov khib nyiab rau hauv lub tshuab nqus dej ntawm lub thoob khib nyiab, thiab lub chaw ua haujlwm yuav rubbish rau hauv cov khib nyiab compressor compression chamber, compression voj voog ua haujlwm khawm. mus ncuav rau hauv lub compression chamber khib nyiab yog compressed, rov ua cov txheej txheem kom txog rau thaum tag nrho cov ntaub ntawv qhia rau tub ceev xwm, lub Upper hopper yog them rau saum lub compression bin thiab nyob rau hauv lub xeev hloov.
1.2, Ntim tau rau ntawm lub npav
Lub unloading khib nyiab tsheb ntawm lub carriage yog poured rau hauv pem hauv ntej ntawm lub compressor, thiaj li hais tias tus nuv ntawm lub rub caj npab yog raws li zoo raws li tus nuv ntawm lub compressor, thiab lub unloading khib nyiab tsheb ntawm lub carriage yog ua los mus rub lub compressor thiab xauv. lub compressor.
1.3, Tsheb thauj mus los khib nyiab
Pib lub tsheb thauj mus los tshem tawm cov khib nyiab kom nqa lub compressor puv ntawm cov khib nyiab tawm ntawm qhov chaw nres tsheb khib nyiab thiab mus rau qhov chaw pov tseg lossis lwm qhov chaw pov tseg.
1.4, Dumpster unloading (Daim duab 7-3)
Tom qab lub tsheb boom tuaj txog ntawm qhov chaw pov tseg lossis lwm qhov chaw pov tseg, lub kaw lus ntawm lub qhov rooj tshem tawm ntawm lub compressor yog loosened los ntawm hydraulic system ntawm lub tsheb boom, thiab tom qab ntawd lub lifting mechanism ntawm lub boom yog ua los nqa lub compressor mus txog rau thaum xaus ntawm lub boom lub tsheb. cov khib nyiab hauv lub thawv yog tawm tag nrho.

Daim duab 7-2 Kev tshem tawm cov khib nyiab Daim duab 7-3 Kev tshem tawm cov thoob khib nyiab

Cov khoom siv installation thiab dej thiab hluav taws xob xav tau
Cov neeg siv khoom tuaj yeem txiav txim siab txog kev teeb tsa ntawm cov khoom siv khib nyiab thiab tsheb raws li thaj chaw hauv cheeb tsam thiab cov peev txheej pov tseg. Cov duab hauv qab no (Daim duab 8-1) qhia cov txheej txheem ib qho kev daws teeb meem ntawm LYSZ15A integrated khib nyiab compressor rau koj siv nkaus xwb.

Ib txoj hauj lwm fais fab kev xav tau: Tus neeg siv khoom yuav tsum muab peb-theem, tsib-xaim, 380V / 10kW sab nraud fais fab mov, nruab nrog cov khoom siv hluav taws xob sib txuas nrog kev tiv thaiv to (hauv <30ma). qhov="" kev="" ncua="" deb="" ntawm="" lub="" hwj="" chim="" thiab="" lub="" compressor="" yuav="" tsum="" tsis="" txhob="" ntau="" tshaj="" 10="">

Cov dej yuav tsum muaj: cov dej ib txwm siv, qhov tsawg kawg nkaus cov kav dej yog 1 nti.
Lub tsev yuav tsum tau muaj: LYSZ15A lub tsev yuav tsum muaj qhov siab ntawm qhov siab ntawm tsawg kawg yog 6m, lub rooj vag yuav tsum muaj qhov siab ntawm qhov siab tsawg kawg yog 5.5m, thiab lub rooj vag dav ntawm yam tsawg 4m.
Cov duab kos thiab cov lus qhia kev qhia tsuas yog qhia cov kev xav tau ntawm cov khoom siv. Tus tsim qauv tuaj yeem tsim cov chaw xws li cov neeg ua haujlwm lounges, chav dej, cov dej phwj tuaj thiab cov dej xau dej raws li qhov chaw nyob ib puag ncig. Txhawm rau kom yooj yim dredging, nws raug nquahu kom muab lub tank tso rau sab nraum zoov.

8-1 LYSZ15AIb qhov chaw nres tsheb tsim kev npaj
